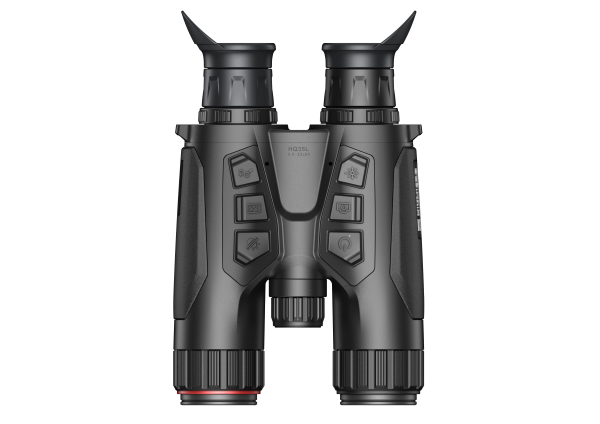

HIKMICRO - HABROK 4K HQ35L 5.5-22x60 Multispectral Thermal Vision Binoculars

Ref : HIKHQ35L4K

Order only

Descriptive :

HIKMICRO - HABROK 4K HQ35L 5.5-22x60 Multispectral Binoculars:

The HIKMICRO HABROK 4K HQ35L 5.5-22x60 binoculars are high-performance multispectral binoculars, combining a 640 × 512 thermal imaging camera (NETD < 20 mK) with a 4K optical sensor with a 60 mm focal length. This model also features a 1000 m laser rangefinder and two replaceable infrared illuminators (850 nm and 940 nm), making it an ideal all-in-one solution for wildlife observation, forest research, rescue operations, and marine applications.

Key Features

• 640 × 512 px, 12 μm thermal detector

• High thermal sensitivity: NETD < 20 mK (@25°C, F# = 1.0)

• 35 mm F1.0 thermal lens with a detection range of up to 1800 m

• Ultra-high-definition 4K CMOS optical sensor (3840 × 2160 px)

• 0.49" OLED display in 1920 × 1080 px

• Built-in laser rangefinder (up to 1000 m)

• Two replaceable IR illuminators (850 nm & 940 nm)

• Battery life of over 8 hours (replaceable Li-ion battery)

• Compact, ergonomic design, lightweight: 798 g

________________________________________

Technical Specifications

Thermal Module

• Sensor: Uncooled VOx focal plane array

• Resolution: 640 × 512 px

• Frequency: 50 Hz

• Pixel pitch: 12 μm

• Spectral range: 8 to 14 μm

• Sensitivity (NETD): < 20 mK (at 25°C, F# = 1.0)

• Lens: 35 mm F1.0

• Focus: Focus ring

• Detection range: Up to 1800 m

• Minimum focusing distance: 3.5 m

• Zoom: 3× to 22× (equivalent optical zoom: 7.3×)

• Field of view: 12.5° × 10.1° / 22 m × 17.6 m at 100 m

Optical module (4K)

• Sensor: Progressive CMOS 1/1.8"

• Resolution: 3840 × 2160 px

• Lens: 60 mm F2.2

• Min. focusing distance: : 3 m

• Zoom: 5.5× to 22× (equivalent optical zoom: 4×)

• Field of view: 7.3° × 4.1° / 12.6 m × 7.2 m at 100 m

• Smart IR: Yes

• Infrared illumination: 940 nm (default) / 850 nm (replaceable)

• Night range: up to 400 m

Display & Interface

• Screen: 0.49" OLED – 1920 × 1080 px

• Palette modes:

o Thermal: White Hot, Black Hot, Red Hot, Fusion

o Optical: Day, Night, Auto

• FFC correction: Automatic / Manual / External

• Visual adjustments: Diopter (-5D to +3D), contrast, brightness, tone (Cool/Hot)

• PIP (Picture in Picture): Yes

• Hotspot & Heat Tracking: Yes

• Compass, GPS, Local Album: Yes

Additional Features

• Photo & Video: Image capture, video and audio recording

• Built-in Memory: 64 GB (eMMC)

• Sleep Mode: Yes

___________________________________________________

Power Supply

• Battery: 18650 Lithium-ion (rechargeable & replaceable)

• Battery Life: ≥ 8 hours (at 25°C, without hotspot)

• External Power Supply: USB-C (5V / 2A), compatible with direct charging

___________________________________________________

General Information

• Protection Rating: IP67

• Dimensions: 138.1 × 68.5 × 222.4 mm

• Weight: 798 g (without battery)

• Operating Temperature Range: -30°C to +55°C

• Interpupillary adjustment: 60 to 74 mm

• Mounting: 1/4"-20 UNC thread

________________________________________

Laser rangefinder

• Laser class: Class 1

• Wavelength: 905 nm

• Maximum range: 1000 m

• Accuracy: ±1 m

• Minimum range: 10 m
