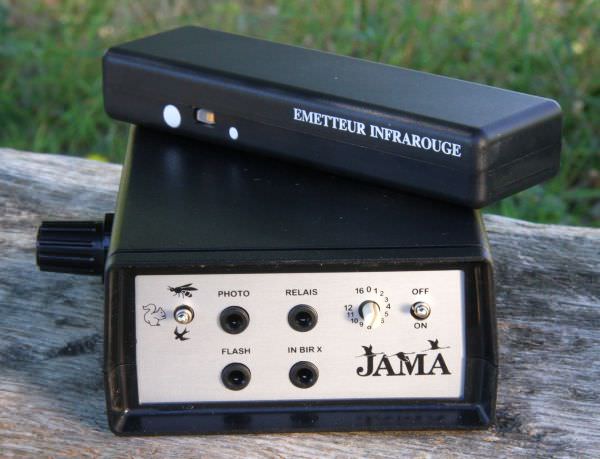

JAMA - BIR3 Infrared barrier for CANON and PENTAX (RS-60E3) :

Ref : BIR3RS60E3

Available

> Manual Intructions BIR3

Descriptive :

JAMA - BIR3 Infrared barrier for CANON and PENTAX (RS-60E3) :


The new version of this barrier will allow IR to manage so "smart" camera and flash accompanying depending on what you want to do.

If we want to shoot nocturnal mammals, bats, sparrows in flight, or dripping water settings are very different. This IR barrier you have a function selector numbered from 1 to 9 that corresponds to a use.

The infrared receiver will handle the camera and flash intelligently to nocturnal mammals, bats, songbirds in flight or water drops .

Infrared barrier BIR2 can be used with either BIR3 barrier mode cross or parallel barrier mode. Bcroix will allow the user to be selective about a specific area of the beam. Parallel mode will increase the possibilities of shooting since only one of the two IR beams is cut to trigger the camera or the flash.

Here is a description of the nine possible functions:

  1. Normal: triggering single photo as the BIR2 device.
  2. Top mirror: This function keeps the mirror up to give a low response time. Ideal for shooting insects or sparrows in flight.
  3. Flash wake: that is to say, the reactive flash every 90s to avoid the flash goes to sleep. This feature will be very useful for photos of owls.
  4. Flash from breaking the beam and triggers the view of 2.5s after waking up.
    This function is provided for photos of nocturnal mammals.
  5. Opens the shutter for a variable period and fires the flash at the break beam and closes the shutter and starts a new sequence. If the beam is not broken during a predefined time the shutter is closed and re-opened 2.5s later.
    This feature is perfect for photos of bats in flight.
  6. Opens the shutter and fires the flash after a variable time and closes the shutter. This is used for shooting water drops in studio.
  7. Same as mode 1 but with the possibility of a second barrier in parallel which increases the possibility of tripping and thus success.
  8. Same as mode 2, but in parallel mode.
  9. Same as Mode 5 but in parallel mode.

The method 1 to 6 that Bcroix the handle is integrated with the BIR3.

In addition to these 9 functions the receiver can be powered by 4 AA batteries or battery which gives more autonomy.

The outputs are on 3.5 mm stereo jack (and thus different from the BIR2)

The transmitter has been optimized for minimum power consumption and works with a 9V battery or with Alim1 in option to feed it with 6 AA battery.

The IR transmitter and receiver set will be supplied with a remote cable dedicated to your camera. This cable has a length of 10 m without extension. If this seems too long or just too long we can make a cord to the length you want.

Optionally you can buy a cord to trigger your flash and external power.

This new barrier will allow to significantly increase the success of your shots. It comes from many years of experience of our workshop on the implementation of IR barrier. If you already have an IR barrier JAMA it useful to integrate this new set.

Weight : 360.00 g

List of compatible cameras :

  • CANON RS-60E3 (Jack 2.5) : EOS R, EOS R6, EOS R7, EOS RP, EOS R10, 1000D, 1100D, 1200D, 1300D, 1500D, 2000D, 100D, 200D, 250D, 300D, 350D, 400D, 450D, 500D, 550D, 600D, 60D, 60Da, 650D, 700D, 750D, 760D, 850D, 70D, 77D, 80D, 90D, 8000D, Kiss Digital, Kiss Digital F, Kiss Digital N, Kiss Digital X, Kiss X2, Kiss X3, Kiss X4, Kiss X5, Kiss X50, Kiss X70, Kiss X6i, Kiss X7i, Kiss X8i, G1X, G1X II, G1X III, G3X, G5X, G10, G11, G12, G15, G16, SX50 HS, SX60 HS, SX70 HS, Digital Rebel, Rebel SL1, Rebel SL2, Rebel SL3, Rebel T1i, Rebel T2i, Rebel T3, Rebel T3i, Rebel T4i, Rebel T5, Rebel T5i, Rebel T6, Rebel T6i, Rebel T6s, Rebel T7, Rebel T7i, Rebel T8i, Rebel XS, Rebel XSi, Rebel XT, Rebel XTi, EOS M5, EOS M6, EOS M6 MK II, Olympus OM-1
  • SAMSUNG : GX-1L, GX-1S, GX-20, NX-100, NX-11, NX-10, NX-5
  • CONTAX : 645, N, N1, NX, N Digital
  • PENTAX K-3 III, CS-205 : 645D, 645Z, ist D, ist DL, ist DL2, ist DS, ist DS2, K1, K1 II, K-3, K3 II, K-30, K-5, K-5 II, K-5 IIs, K-5 IIt, K-50, K-500, K-7, K10 Grand Prix, K100D, K100D Super, K10D, K110D, K200D, K20D, MZ-6, MZ-L, ZX-L


Remarks :

Compatible with wired remote RS-60E3

330.00 € VAT included Add to Cart
